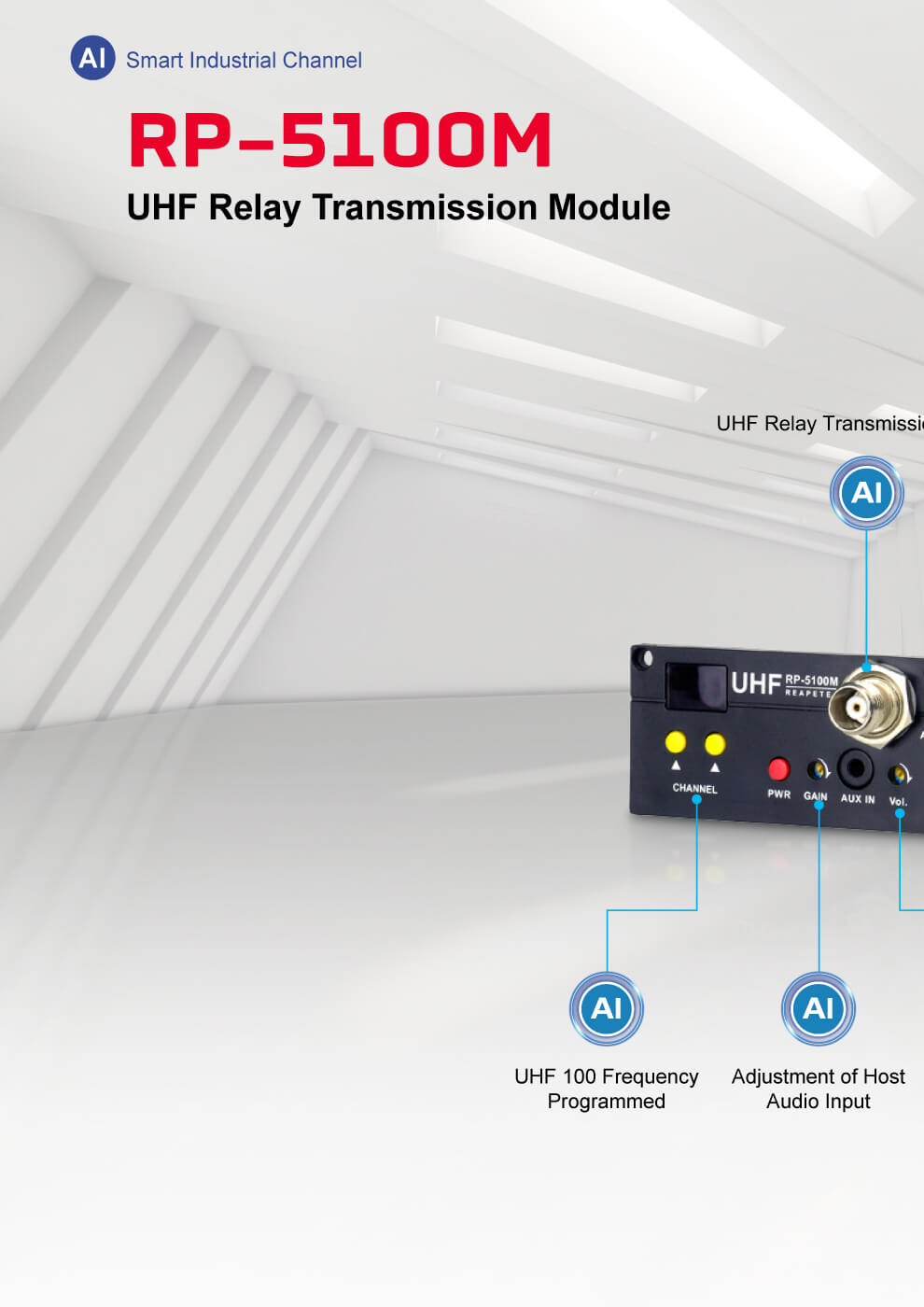

RP-5100MUHF Interlinking Transmitter Module

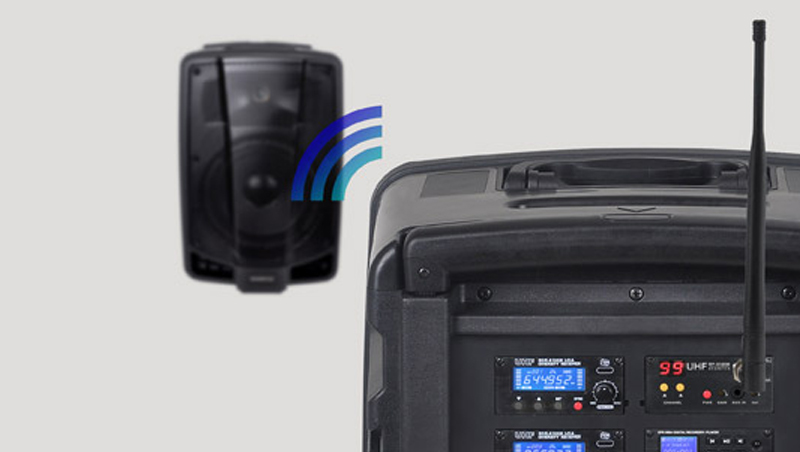

CHIAYO RP-5100M UHF 100-Channel Relay Transmitter Module is designed to enhance wireless audio transmission range and quality, suitable for various applications. Operating in the UHF 500 - 960 MHz range, it offers exceptional compatibility and stable performance, making it an ideal choice for wireless systems.

Features

Powerful Transmission and Flexible Frequency Adjustment

RP-5100M features up to 100mW high-power output and 35mW low-power output with a built-in switch function to meet different usage needs. Its 25 MHz bandwidth and 100 adjustable channels ensure stable signal transmission in various environments, ideal for large conferences, outdoor events, and music performances, significantly enhancing equipment performance.

Easy Setup and Versatile Interfaces

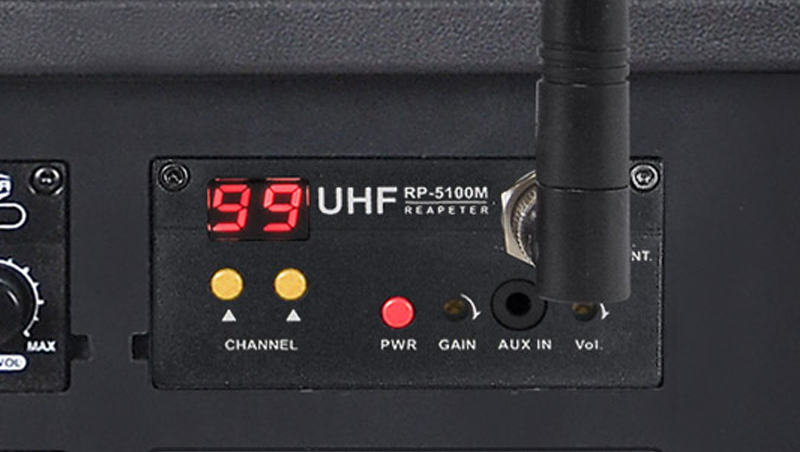

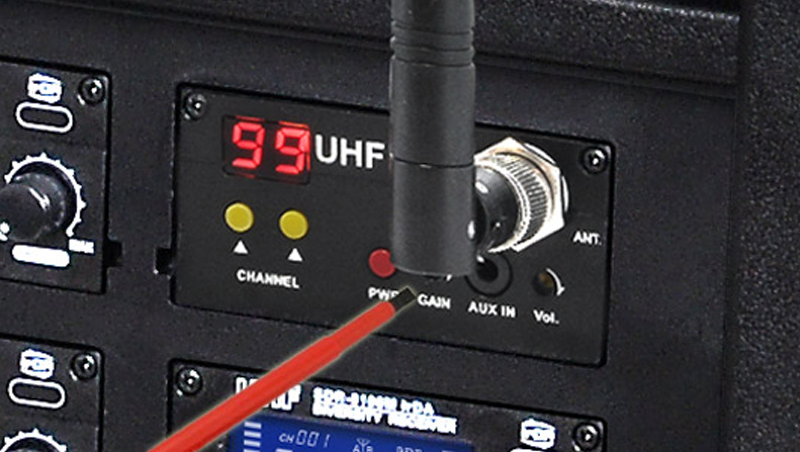

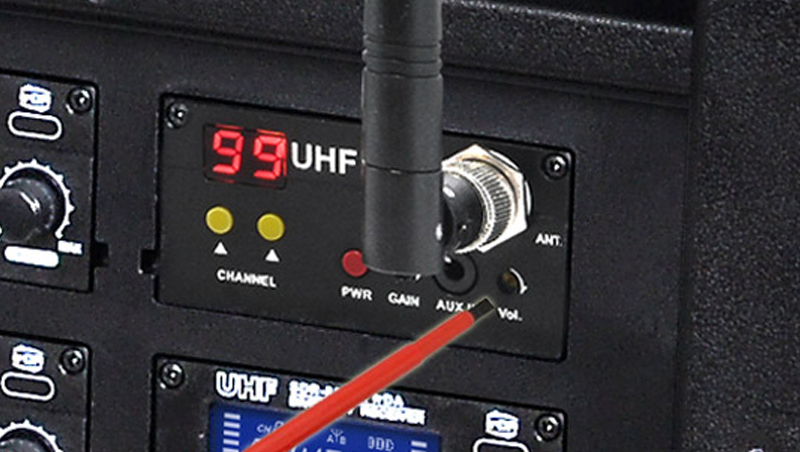

RP-5100M is equipped with user-friendly channel selection buttons and a seven-segment channel indicator for intuitive frequency adjustment. The module includes a TNC antenna interface, 6.3mm external audio input, gain adjustment, and volume control, allowing easy connection to various audio devices like phones, MP3 players, and microphones. This makes RP-5100M widely applicable in educational training, corporate meetings, religious activities, and community events, making your equipment more complete and powerful.

Model RP-5100M
Frequency range UHF 500 - 960 MHz
Bandwidth 25 MHz
Preset frequencies 100
Max power output High: 100mW, Low: 35mW. Switchable on PCB.
Peak deviation ± 40 KHz
Spurious emission > 60 dB below carrier
Dynamic range > 110 dB(A)
Receiving antenna TNC female
Modulation FM
Power supply 12V DC
Dimensions (mm) 74 x 145 x 36
Weight (g) 76
